NACA 2418 (naca2418-il)

NACA 2418 - NACA 2418 airfoil


Airfoil naca2418-il
Details Dat file Parser
(naca2418-il) NACA 2418
NACA 2418 airfoil
Max thickness 18% at 30% chord.
Max camber 2% at 40% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Selig format

NACA 2418
1.0000     0.0019
0.9500     0.0155
0.9000     0.0281
0.8000     0.0508
0.7000     0.0702
0.6000     0.0865
0.5000     0.0989
0.4000     0.1071
0.3000     0.1088
0.2500     0.1065
0.2000     0.1015
0.1500     0.0934
0.1000     0.0805
0.0750     0.0717
0.0500     0.0603
0.0250     0.0445
0.0125     0.0328
0.0000     0.0000
0.0125     -0.0245
0.0250     -0.0344
0.0500     -0.0468
0.0750     -0.0548
0.1000     -0.0603
0.1500     -0.0674
0.2000     -0.0709
0.2500     -0.0718
0.3000     -0.0712
0.4000     -0.0671
0.5000     -0.0599
0.6000     -0.0504
0.7000     -0.0397
0.8000     -0.0280
0.9000     -0.0153
0.9500     -0.0087
1.0000     -0.0019
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

NACA 63PreviewDetails
NACA 64(3)-418PreviewDetails
EPPLER 550 AIRFOILPreviewDetails
MH 102 16.99%PreviewDetails
EPPLER 1213 AIRFOILPreviewDetails
EPPLER 549 AIRFOILPreviewDetails
EPPLER 552 AIRFOILPreviewDetails
NACA 64(3)-218PreviewDetails

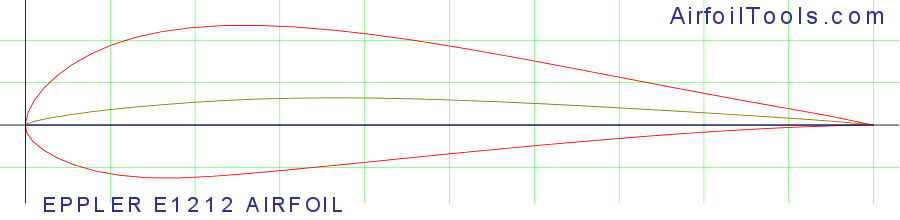

EPPLER E1212 AIRFOILPreviewDetails
CLARK YM-18 AIRFOILPreviewDetails

Polars for NACA 2418 (naca2418-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   naca2418-il50,00098.6 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2418-il50,000527.3 at α=7.75°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2418-il100,000942.9 at α=8.5°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2418-il100,000544 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2418-il200,000960.8 at α=6.75°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2418-il200,000558.6 at α=6°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2418-il500,000983.4 at α=6.5°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2418-il500,000575.3 at α=7°Mach=0 Ncrit=5Xfoil predictionDetails
   naca2418-il1,000,000997.1 at α=7°Mach=0 Ncrit=9Xfoil predictionDetails
   naca2418-il1,000,000587.5 at α=7.25°Mach=0 Ncrit=5Xfoil predictionDetails
