WORTMANN FX 057-816 (fx057816-il)

WORTMANN FX 057-816 - Wortmann FX 057-816 airfoil


Airfoil fx057816-il
Details Dat file Parser
(fx057816-il) WORTMANN FX 057-816
Wortmann FX 057-816 airfoil
Max thickness 16.2% at 37.1% chord.
Max camber 5.1% at 37.1% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format

WORTMANN FX 057-816
       13.       13.

  0.000000  0.000000
  0.017040  0.029790
  0.066990  0.062900
  0.146450  0.094790
  0.250000  0.118870
  0.370590  0.132260
  0.500000  0.122940
  0.629410  0.084080
  0.750000  0.051790
  0.853560  0.028300
  0.933020  0.012110
  0.982970  0.003340
  1.000000  0.000000

  0.000000  0.000000
  0.017040 -0.013530
  0.066990 -0.021280
  0.146450 -0.026730
  0.250000 -0.030190
  0.370590 -0.029580
  0.500000 -0.029060
  0.629410 -0.027280
  0.750000 -0.019190
  0.853560 -0.005420
  0.933020  0.001210
  0.982970  0.001360
  1.000000  0.000000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

EPPLER 656 AIRFOILPreviewDetails
EPPLER 432 AIRFOILPreviewDetails

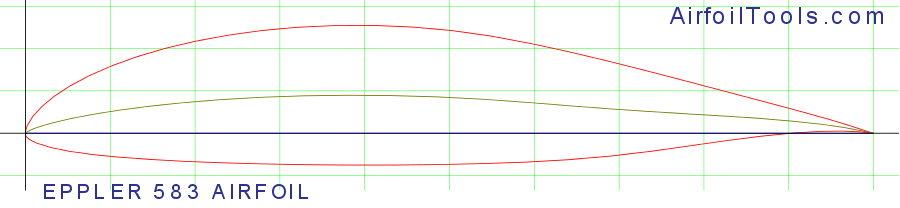

EPPLER 583 AIRFOILPreviewDetails
